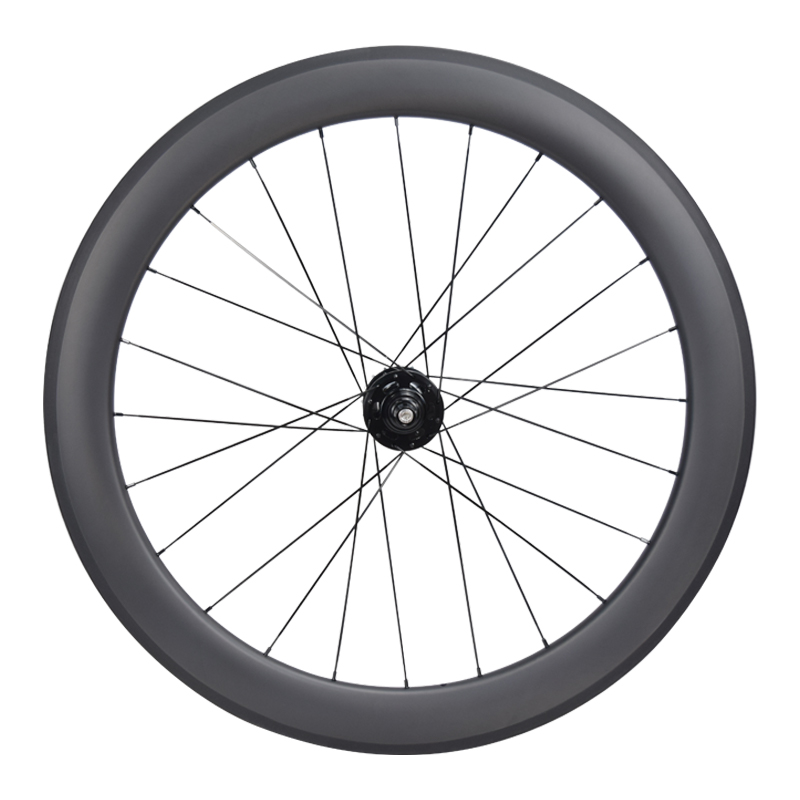

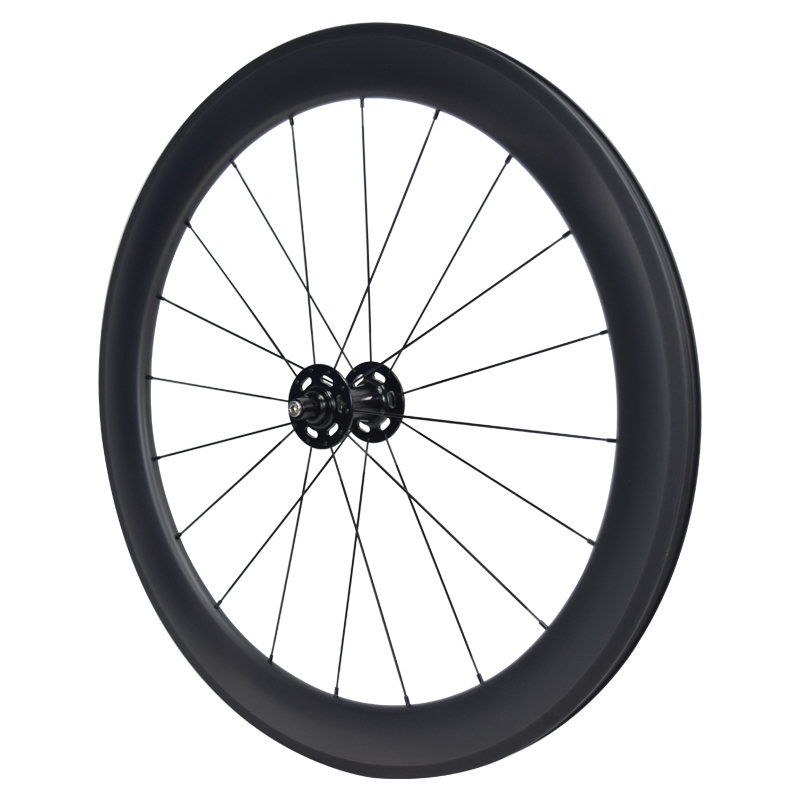

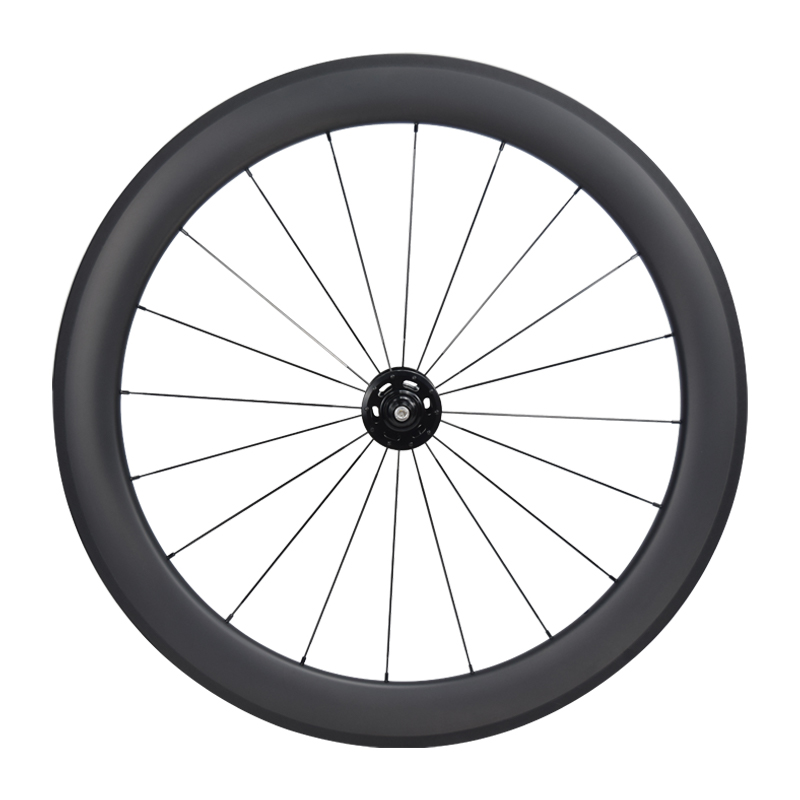

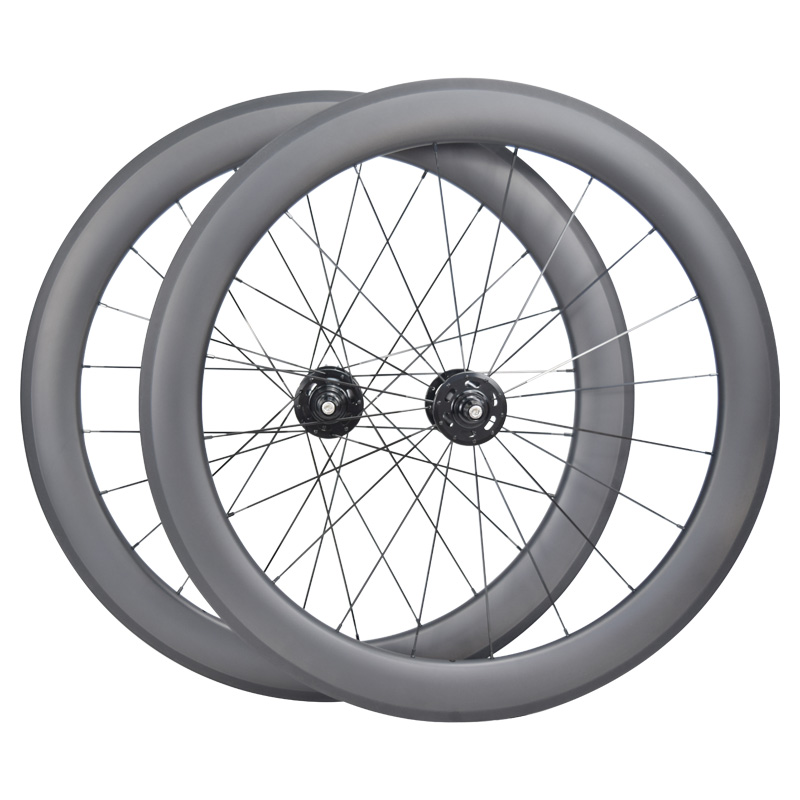

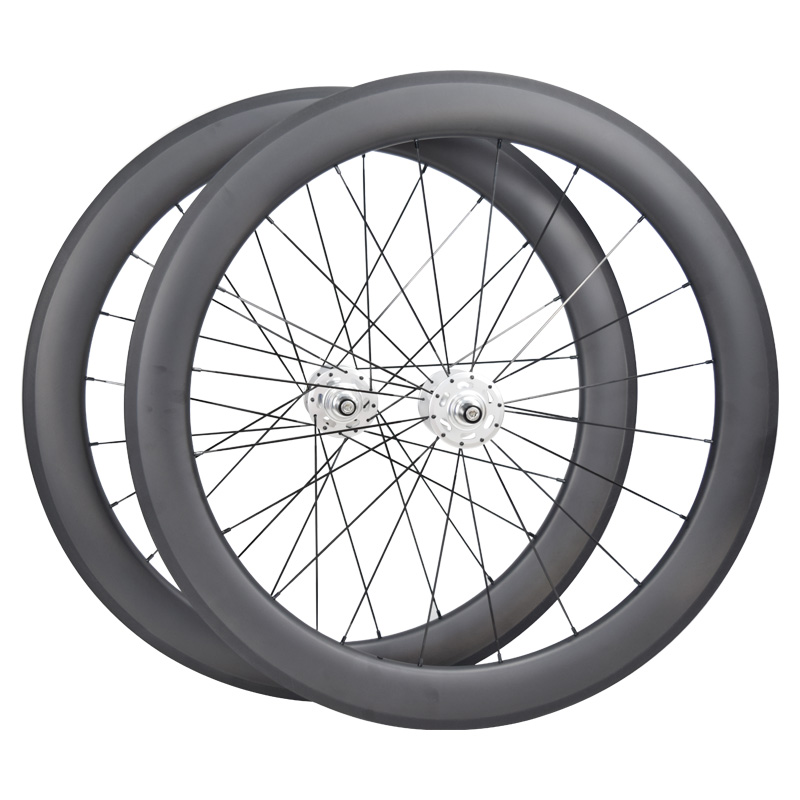

Lightweight Carbon Fixed Gear 700C Wheelset SA-T02

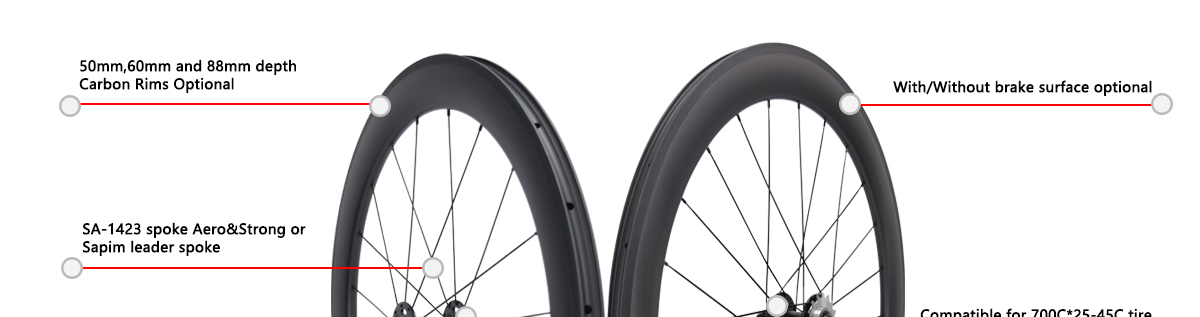

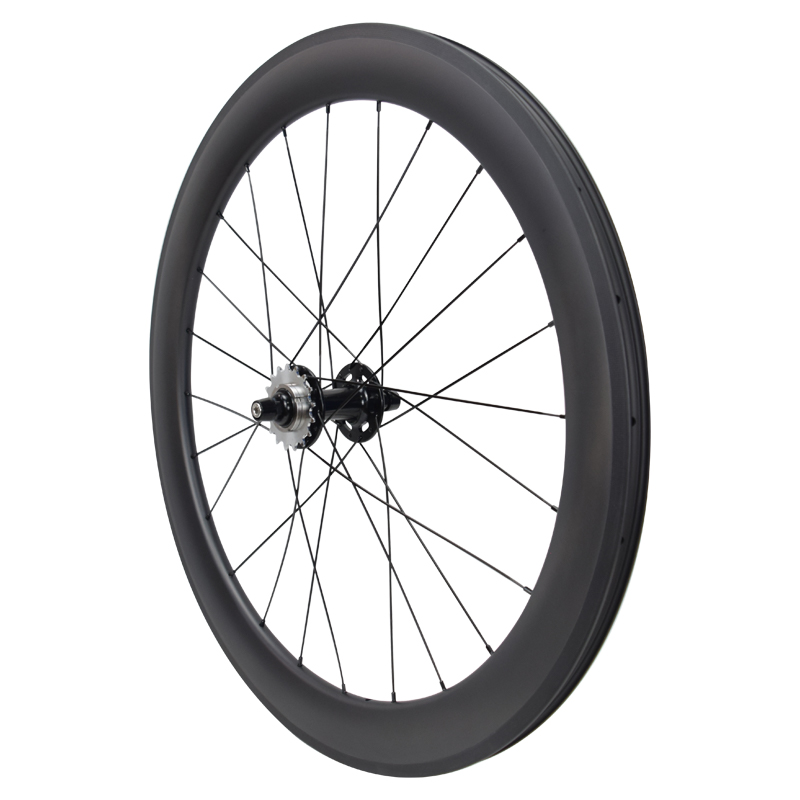

• Versatile Carbon Rims:Choose from 50mm, 60mm, or 88mm depth options, available with or without a brake surface to suit your riding style. Finished in 3K, UD, or 12K weave for a sleek, premium aesthetic.

• Aerodynamic Spokes:Equipped with SA-1423 Aero&Strong spokes or Sapim Leader spokes, delivering exceptional rigidity and wind-cutting efficiency for faster, more stable rides.

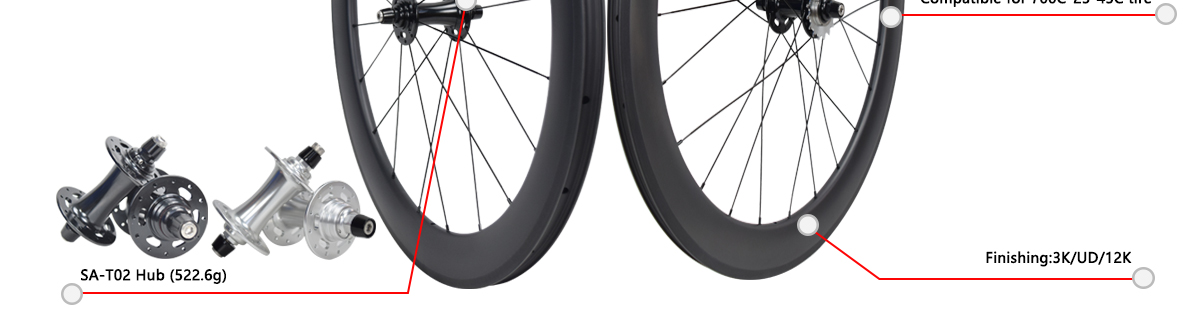

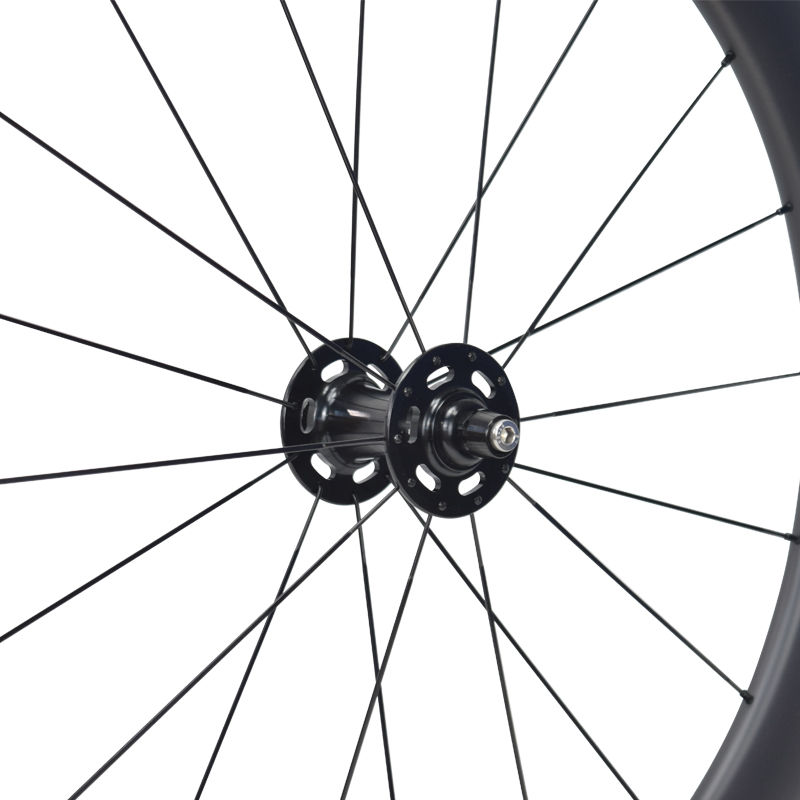

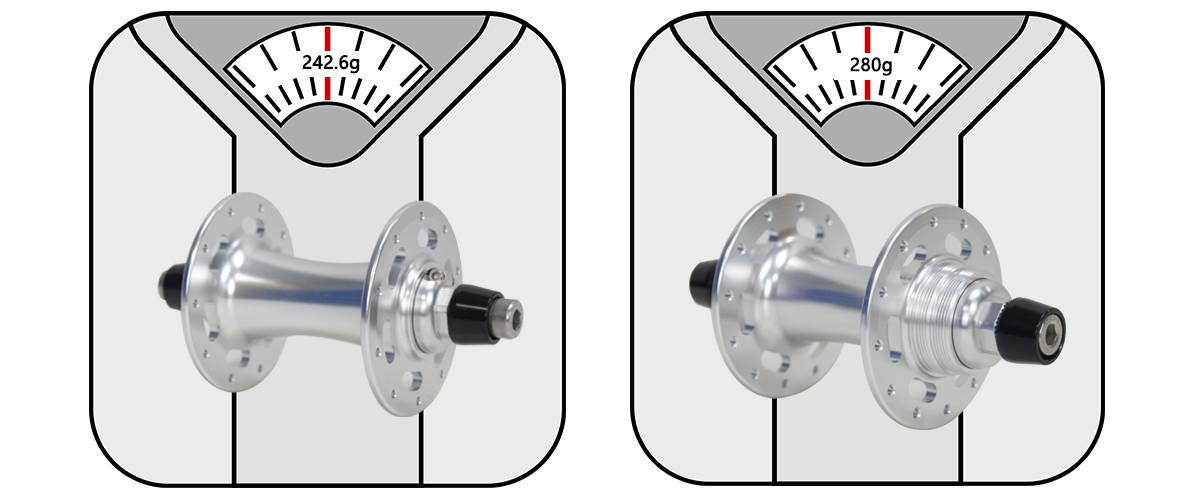

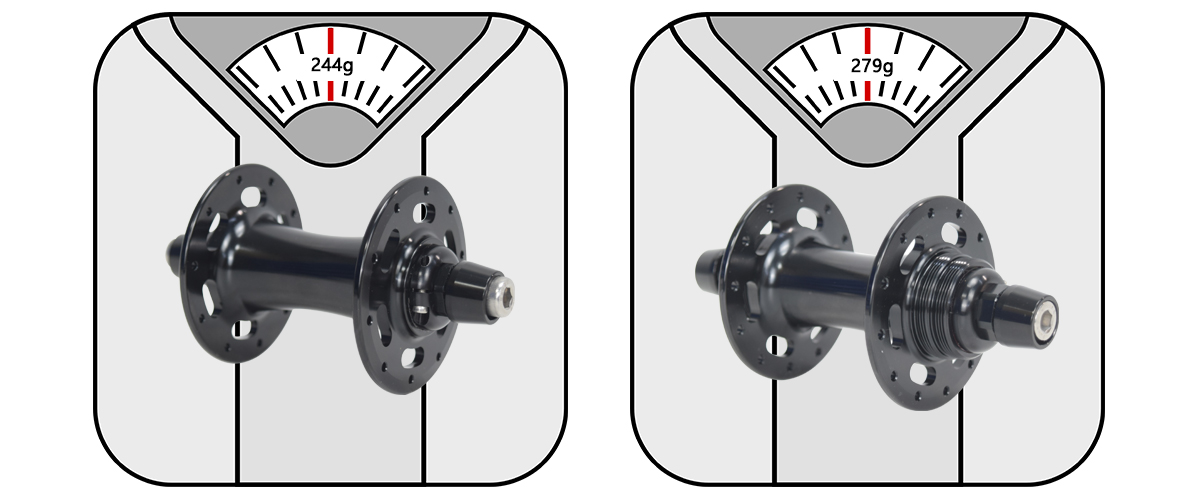

• Lightweight SA-T02 Hub:The ultra-light SA-T02 hub (only 522.6g) ensures smooth rolling and reliable performance, reducing rotational weight for improved acceleration.

• Wide Tire Compatibility:Designed to fit 700C×25-45C tires, making it perfect for both road cycling and light gravel adventures.

• • If you require a lighter and better configuration, please contact us for an upgrade.

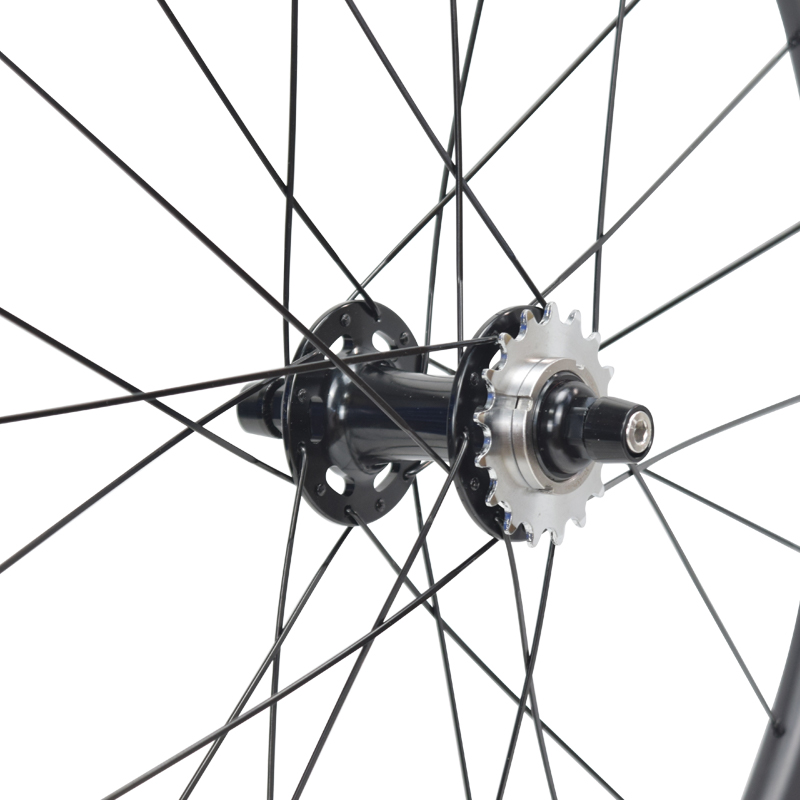

• 16T Hub Body Structure: Delivers ultra-quick engagement for instant power transfer, so every pedal stroke translates directly to forward momentum.

• Premium Bearings: Front and rear hubs are equipped with 6902×2 bearings, ensuring smooth, friction-free rotation and long-lasting reliability.

• Optimized Axle Spacing: Front axle spacing of 9×100mm and rear axle spacing of 10×120mm, compatible with most modern road, mountain, and gravel bike frames.

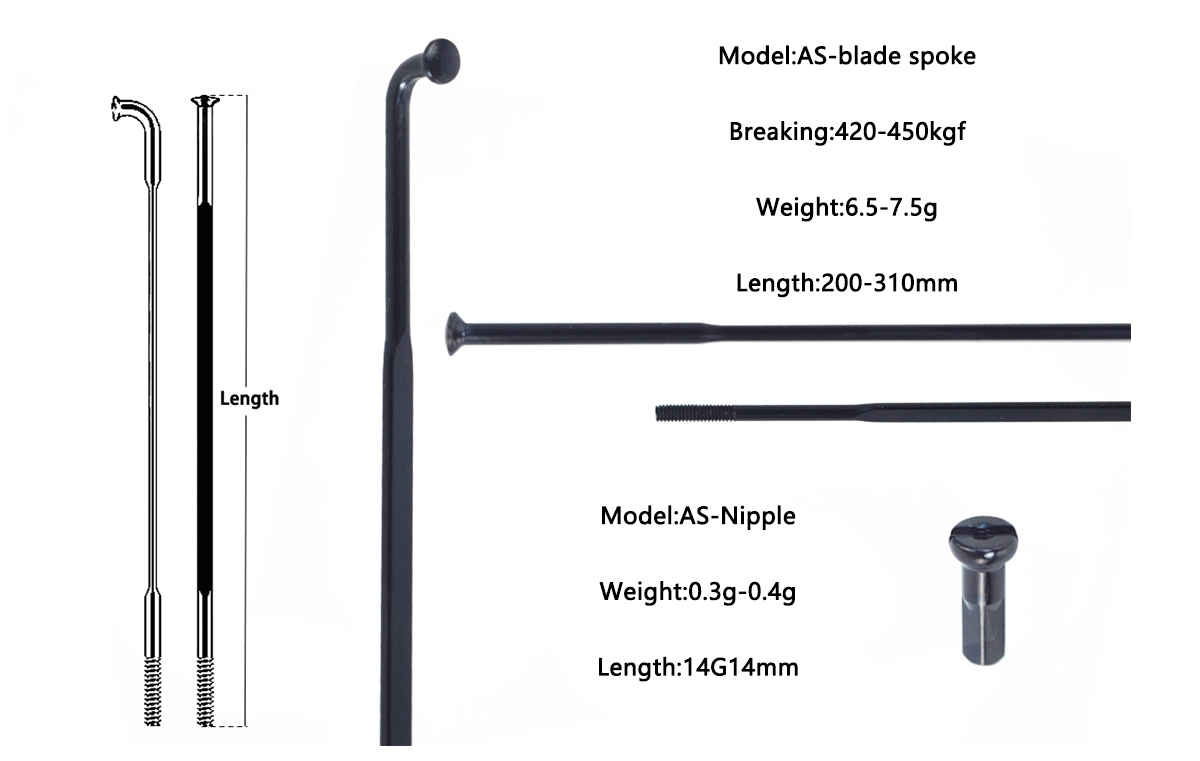

SA-1423 spoke

♦key features⇓

• AS Black Spokes: Constructed from high-strength steel with a corrosion-resistant black finish, these spokes deliver a breaking strength of 42–150kgf for reliable performance under load. Available in lengths from 200mm to 310mm to fit various wheel sizes.

• Lightweight AS Nipples: Precision-machined to weigh just 0.3–0.4g each, with a 14mm length that securely fastens spokes while minimizing overall wheel weight.

• Durable & Reliable: The black coating resists rust and wear, making this set ideal for both daily riding and demanding conditions.

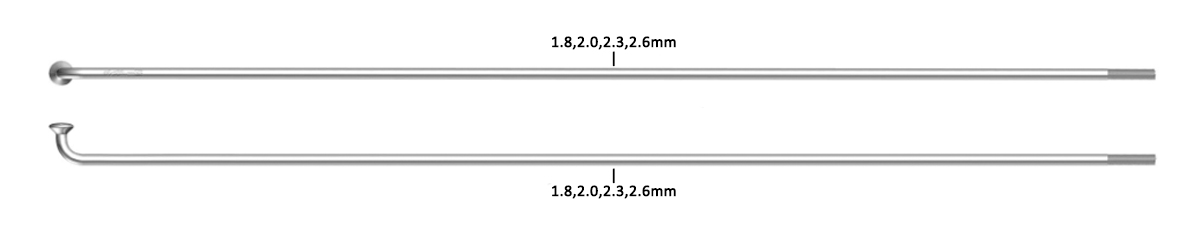

Sapim leader spoke

♦key features⇓

• Premium Stainless Steel: Crafted from corrosion-resistant stainless steel to withstand harsh weather and rough terrain, ensuring long-term durability.

• Multiple Diameter Options: 145–310mm length; diameters: 15G-1.8mm/14G-2.0mm/13G-2.3mm/12G-2.6mm, allowing you to match the spoke strength to your wheel build needs.

• Two Bend Styles: Choose from straight or angled spoke heads for compatibility with different hub designs, ensuring a secure fit.

• SpecsStrength: 1080–1180 N/mm² (durable for daily loads)

• Finish: Black or silver(oxidised/chromed); oval head

SA-T02 track carbon 25/26mm width wheels (18mm inner wide):

Model	Depth	outer width	Rim type	Hub	Front size	Rear size	Spoke	Holes	Tubeless weight(+/-3%)
SA50CT-26	50mm	26mm	Tubeless/Clincher/Tubular	SA-T02	9*100mm	10*120mm	SA-1423	20H/24H	1751g
SA60CT-26	60mm	26mm	Tubeless/Clincher/Tubular	SA-T02	9*100mm	10*120mm	SA-1423	20H/24H	1891g
SA88CT-25	88mm	25mm	Tubeless/Clincher/Tubular	SA-T02	9*100mm	10*120mm	SA-1423	20H/24H	2291g



Track wheel rim or disc brake carbon rim 25mm wide:

Rim	SA50CT-26	SA60CT-26	SA88CT-25
Rim weight	460g±15g	530g±15g	730g±15g
ERD	540mm	520mm	464mm
Sectional drawing
